Titanium heat exchanger,titanium plate & titanium tube heat exchanger

Titanium Shell and Tube Heat Exchangers are suited for a vast range of chemical environments and conditions, due to a thin, invisible, but extremely protective, surface oxide film (primarily TiO2). Titanium is especially known for its elevated resistance to localized attack and stress corrosion in aqueous chlorides (e.g., brines, seawater) and other halides and wet halogens (e.g., wet Cl2 or Cl2- sat, brines), and to hot, highly-oxidizing, acidic solutions (e.g., FeCl3 and nitric acid solutions). Titanium is also recognized for its superior resistance to erosion, erosion-corrosion, cavitations, and impingement in flowing, turbulent fluids.

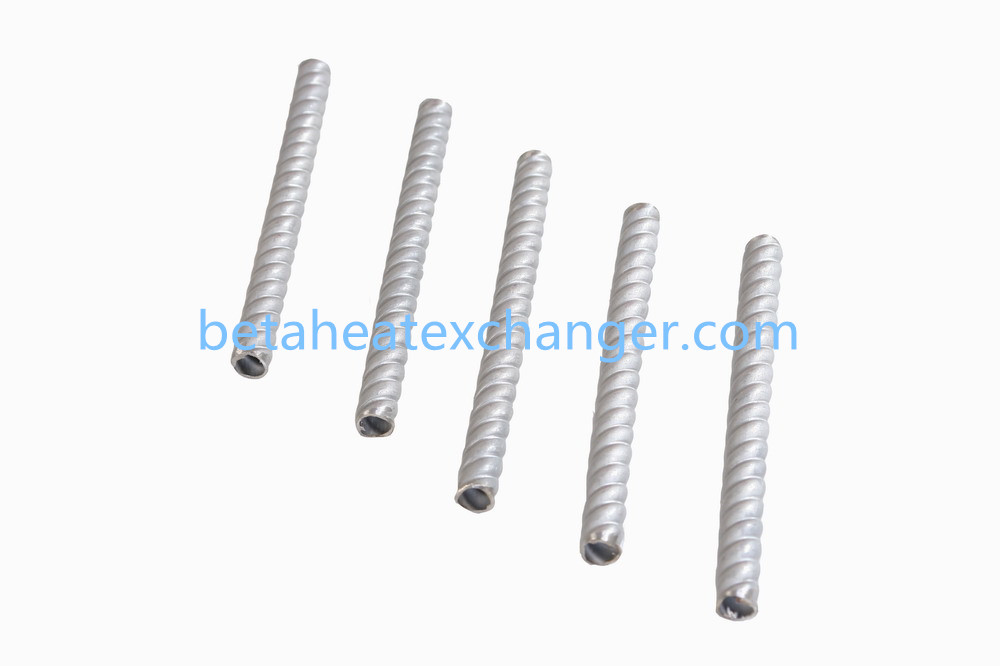

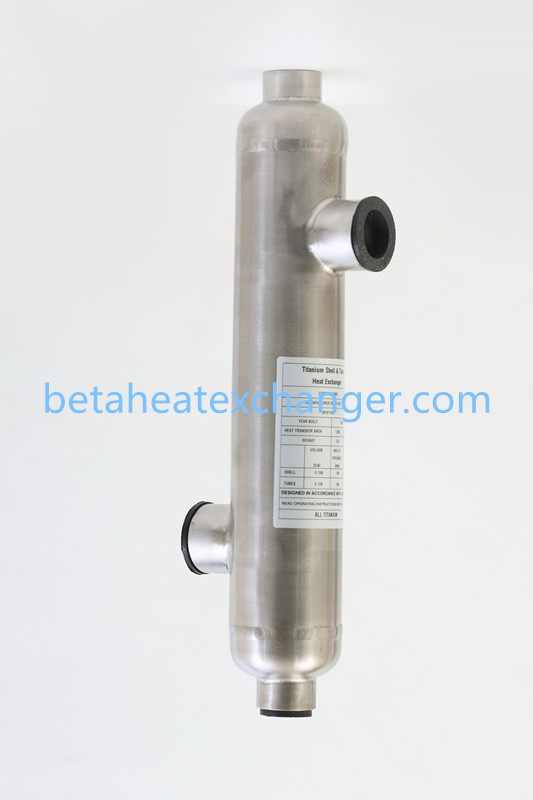

Alfa Titanium Shell and Tube Heat Exchanger is fully constructed with pressurized shell and spiral corrugated or smooth inner tube. This ensures high velocities inside the unit making titanium shell and tube heat exchanger a very reliable, efficient and cost effective way on the heating, cooling, condensing or evaporation and so on

Features:
With high heat transferring efficient heat exchanger tubes and smooth shell, it ensures high velocities inside of the unit making the heat exchanger a very reliable, efficient and cost effective way to transfer heat indirectly between hot circuit and cold circuit.
Alfa Titanium Shell and Tube Heat exchangers are fully welded construction. It can endure high working pressure. It avoids the replacement for gasket and saved more time and cost on maintain or clean.

Advantages:
1. High efficiency,coefficient up to 10000 W/m2•°C,Heat exchanging capacity 3-7 times traditional equipments.
2. Compact configure, occupy small area, one tenth as the traditional equipments
3. Titanium material, endure high temperature, pressure and corruption.
4. Helix screw thread elasticity heat exchange bundle, eliminate the stress
5. Design flux speed is 5.5m/s, less dirt.
6. ASME standard VIII-1
7. Easy clean and maintain
8. Big flow volume
9. Compactable
10. Easy installation and durable.

Design Parameters	TUBES	SHELL
TEMPERATURE	406°F (208°C)	406°F (208°C)
PRESSURE 1	650 PSI (4.50MPa)	190 PSI (1.31MPa)
PRESSURE 2	650 PSI (4.50MPa)	500 PSI (3.50MPa)
PRESSURE 3	190 PSI (1.31MPa)	87 PSI (0.60MPa)

Titanium Shell and Tube Heat Exchangers Nominal Performance for Pool Heating

Model	Normal Capacity		Pool Capacity
	kW	kBtu/Hr	Gallons@1°F/hr	M3@1°C/hr
SP-55Kti	16	55	4700	32
SP-85Kti	25	85	7300	49.7
SP-155Kti	45	155	13300	90.6
SP-210Kti	60	210	18000	122.6
SP-300Kti	88	300	25800	175.8
SP-360Kti	105	360	31500	214.6
SP-600Kti	175	600	52500	357.7
SP-1200Kti	352	1200	105600	719
SP-2400Kti	704	2400	211200	1438
SP-3000Kti	880	3000	264000	1797.5
SP-3600Kti	1056	3600	316800	2157
SP-4500Kti	1310	4500	396000	2700
SP-5000Kti	1460	5000	439000	3000
SP-6000Kti	1760	6000	526800	3600

Note:
1. For occasional (holidays & weekends) use pools we recommend a 2x output multiplier to obtain a 2°F/hr heat up rate;
2. Nominal values are based on 60°C temperature between incoming heating and heated water.

Typical residential application:
Swimming pools, spas heating
Hot tube heating

Typical industrial application:
Marine oil cooling or heating
Offshore hydraulic oil cooling
Sea food processing
Waste water heat recovery
Industry process applications
