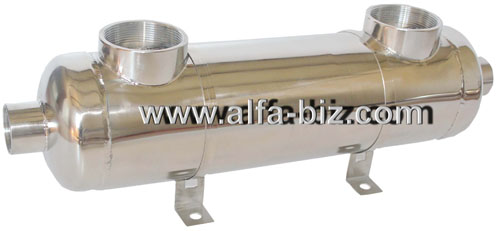

Titanium & Stainless Steel Intercoolers

Alfa Intercoolers are ideal for cooling marine engines as well as various land based engines such as gen-sets, co-generation equipment and fire pumps. They are also suitable for facilitating engine test and development programs. Additional Intercoolers designed for specific engines are also available; please see or contact the sales department detail below for further information.
• Standard range for engines up to 650kW.
• Improve fuel efficiency and enhance engine performance by cooling turbo charged air.
• Readily available from stock through our global network of stockists.
• Available in materials suitable for cooling with fresh or salt water.

Design Parameters	TUBES (Water)	SHELL (Air)
TEMPERATURE	120°C(250°F)， 150°C(300°F)，200°C(390°F)
PRESSURE1	2.0MPa(290PSI)	2.0MPa(290PSI)
PRESSURE2	2.5MPa(360PSI)	2.5MPa(360PSI)
PRESSURE3	3.5MPa(508PSI)	3.5MPa(508PSI

We produced series of interoolers, please view the below table for their construction.

Standard Materials	Stainless Steel Type	Titanium Type
Shell	Steel	Titanium
Tubes	SS316L	Titanium
Connections	SS304	Titanium

Mounting brackets are available for all models
Surface treatment: powder coating or sandblasting
Please feel free to contact our sales engineer for your requirement specifications.
