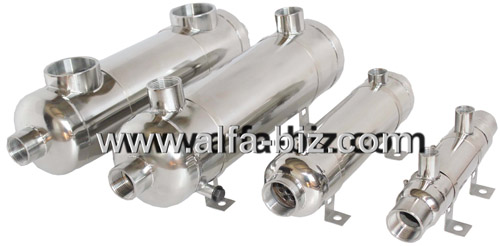

Titanium & Stainless Steel Marine Heat Exchangers |
Alfa Marine Heat Exchangers are completed welded heat exchangers. Alfa Marine Heat Exchangers are fabricated with the distinctive spiral corrugated tube design. Its compact structure is an integration of detailed engineering for effective use with high fluid velocities and low pressure drops. Most marine products are made of cupronickel, stainless steel 316L or titanium which are highly corrosion resistant and therefore suitable for use with sea water. Some of the smaller units are fitted with neoprene end covers which can fit directly into the sea water pipe work.
We manufactures a range of heat exchangers which can be used to marinise a variety of engines up to 1400 kW (1900HP). There are also a large number of engine specific heat exchangers for a variety of Cummins, Ford, Perkins, British Leyland Rover, General Motors, Peugeot, Mercedes, VW, Mitsubishi, New Holland and Genesis engines.
We also manufactures engine Heat Exchangers suitable for all types of engines up to 1200kW (1600HP) and gearbox Heat Exchangers suitable for all types of engines up to 1500 (2000HP). For larger engines please contact the sales department.
We manufacture a range of hydraulic Heat Exchangers suitable for use with deck machinery, bow thrusters, power steering etc.
Design Parameters |
TUBES (Sea Water) |
SHELL(Engine Water) |
TEMPERATURE |
125°C(260°F) |
125°C(260°F) |
PRESSURE1 |
0.3MPa(45PSI) |
2.5MPa(360PSI) |
PRESSURE2 |
1.0MPa(145PSI) |
2.5MPa(360PSI) |
PRESSURE3 |
1.5MPa(218PSI) |
2.5MPa(360PSI) |
We produced series of marine Heat Exchangers, please view the below table for their construction.
Standard Materials |
Stainless Steel Type |
Cupronickel Type |
Titanium Type |
Shell |
SS304/316L |
SS304/316L |
Titanium |
Tubes |
SS316L |
Cu/Ni 90/10 |
Titanium |
Connections |
SS304/Steel |
SS304/copper |
Titanium |
Mounting brackets are available for all models
Surface treatment: powder coating or sandblasting
Please feel free to contact our sales engineer for your requirement specifications.
