Titanium & Stainless Steel Swimming pool heat exchangers

Beta M&E. produced a various range of shell and tube heat exchangers for solar pool heating systems or boiler pool heating systems. To promote longevity of all the system components, instead of placing chlorine or salt pool water directly through the solar panels, utilize an external swimming pool heat exchanger for a more versatile, robust solar design.

Our swimming pool heat exchangers are designed by our special innovative tube designs, spiral twisted corrugation on the tubing surface, which were engineered to maximize the use of solar or boiler energy; thus increasing the overall thermal efficiency of the system.

With a wide range of sizes, and a selection of different materials to suit the specific requirements, these popular Swimming Pool models are the perfect solution for any pool, spa, and hot tub application.

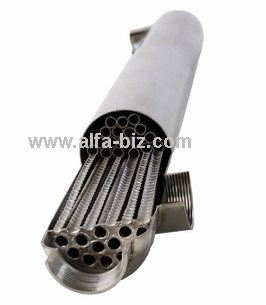

Alfa Swimming Pool Heat Exchanger is fully constructed with pressurized shell and spiral corrugated inner tube. This ensures high velocities inside the unit making Swimming Pool heat exchanger a very reliable, efficient and cost effective way to transfer heat indirectly between any hot water circuit, steam circuit and any pool or spa circuit, besides other application.

We have a large range of heat exchangers well suited from small spas up to Olympic size pools, our units are rated from 55,00 to up to 5,000,000 BTU/H

Features:
With high heat transferring efficient heat exchanger tubes and smooth shell, it ensures high velocities inside of the unit making the heat exchanger a very reliable, efficient and cost effective way to transfer heat indirectly between any boiler or solar heating circuit and any pool or spa circuit, besides other applications.

Advantages:
1. High efficiency,coefficient up to 10000 W/m2•°C,Heat exchanging capacity 3-7 times traditional equipments.
2. Compact configure, occupy small area, one tenth as the traditional equipments.
3. Stainless steel and/or titanium material, endure high temperature, pressure and corruption.
4. Helix screw thread elasticity heat exchange bundle, eliminate the stress.
5. Design flux speed is 5.5m/s, less dirt.
6. ASME standard VIII-1
7. Big flow volume
8. Compactable
9. Easy installation and durable.

Design Parameters	TUBES	SHELL
TEMPERATURE	406°F (208°C)	406°F (208°C)
PRESSURE	190 PSI (1.31MPa)	190 PSI (1.31MPa)

Certificates:

File SA33265
Heat exchangers, shell and tube type, Models SP-55K, SP-85K, SP-155K, SP-210K, SP-300K, SP-360K, SP-600K, SP-1200K, may be followed by suffix -S

We produced series of swimming pool heat exchangers, including
1. Stainless steel pool heat exchangers
2. Titanium pool heat exchangers
3. Plastic/titanium pool heat exchangers.
Please view the below table for their construction.

Standard Materials	Stainless Steel 316L Pool Heat Exchangers	Titanium Pool Heat Exchangers	Stainless Steel 304 Pool Heat Exchangers
Shell	SS316L	Titanium	SS304
Tubes	SS316L	Titanium	SS304
Connections	SS316L	Titanium	SS304
Download	Specification	Specification	Specification
	Manual	Manual	Manual

Note: Please check your working temperature in Stainless Steel and Titanium Corrosion Resistance Table for material type used.

Swimming Pool Heat Exchangers Nominal Performance

Model	Normal Capacity		Pool Capacity
	kW	kBtu/Hr	Gallons@1°F/hr	M3@1°C/hr
SP-55K	16	55	4700	32
SP-85K	25	85	7300	49.7
SP-155K	45	155	13300	90.6
SP-210K	60	210	18000	122.6
SP-300K	88	300	25800	175.8
SP-360K	105	360	31500	214.6
SP-600K	175	600	52500	357.7
SP-1200K	352	1200	105600	719
SP-2400K	704	2400	211200	1438
SP-3000K	880	3000	264000	1797.5
SP-3600K	1056	3600	316800	2157
SP-4500K	1310	4500	396000	2700
SP-5000K	1460	5000	439000	3000
SP-6000K	1760	6000	526800	3600

Note:
1. For occasional (holidays & weekends) use pools we recommend a 2x output multiplier to obtain a 2°F/hr heat up rate;
2. Nominal values are based on 60°C temperature between incoming heating and heated water.

Quick Selection Reference for swimming pool heat exchangers

Model No.	Pool Capacity
	m3	USGAL
SP-55K	15	4000
SP-85K	30	8000
SP-155K	45	12000
SP-210K	70	18000
SP-300K	90	24000
SP-360K	120	32000
SP-600K	200	53000
SP-1200K	400	106000
SP-2400K	800	212000
SP-3000K	1000	265000
SP-3600K	1200	318000
SP-4500K	1500	397500
SP-5000K	1660	441500
SP-6000K	1800	475500

Stainless Steel and Titanium Corrosion Resistance Table

Chlorine Concentration	Working Temperature
	60°C	80°C	120°C	130°C
equal 10ppm	304	304	304	316L
equal 25ppm	304	304	316L	316L
equal 50ppm	304	316L	316L	Ti
equal 80ppm	316L	316L	316L	Ti
equal 150ppm	316L	316L	Ti	Ti
equal 300ppm	316L	Ti	Ti	Ti
300ppm more	Ti	Ti	Ti	Ti

Typical residential application:
Swimming pools, spas heating
Hot tube heating
Floor heating
Driveway snowmelts

Typical industrial application:
Oil cooling or heating
Steam condenser
District heating
Transmission and engine cooler
Boiler sample cooler
Waste water heat recovery
Industry process applications
