Titanium & Stainless Steel DC Heat Exchanger |

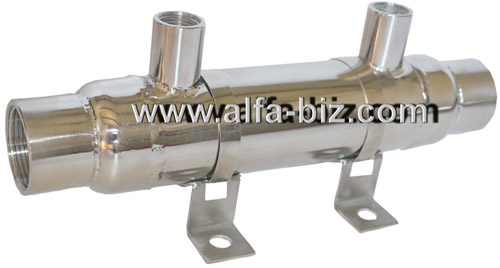

Alfa DC Heat Exchanger are completed welded heat exchangers. Alfa DC Heat Exchanger are fabricated with the distinctive spiral corrugated tube design. Its compact structure is an integration of detailed engineering for effective use with high fluid velocities and low pressure drops. Alfa DC Heat Exchanger are designed for use on small marine transmissions. They have the corrugated stainless steel or titanium tubes as Alfa DC Heat Exchanger and therefore have the longer life expectancy.
Design Parameters |
TUBES (Sea Water) |
SHELL(Engine Water) |
TEMPERATURE |
125°C(260°F) |
125°C(260°F) |
PRESSURE1 |
0.3MPa(45PSI) |
2.5MPa(360PSI) |
PRESSURE2 |
1.0MPa(145PSI) |
2.5MPa(360PSI) |
PRESSURE3 |
1.5MPa(218PSI) |
2.5MPa(360PSI) |
We produced series of DC Heat Exchanger, please view the below table for their construction.
Standard Materials |
Stainless Steel Type |
Titanium Type |
Shell |
Steel |
Titanium |
Tubes |
SS316L |
Titanium |
Connections |
SS304 |
Titanium |
Mounting brackets are available for all models
Surface treatment: powder coating or sandblasting
Please feel free to contact our sales engineer for your requirement specifications.
