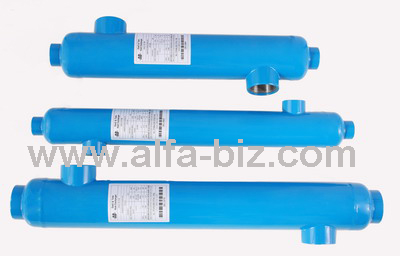

Titanium & Stainless Steel Fuel Coolers

Alfa Fuel Coolers are completed welded heat exchangers. Alfa Fuel Coolers are fabricated with the distinctive spiral corrugated tube design. Its compact structure is an integration of detailed engineering for effective use with high fluid velocities and low pressure drops. Alfa fuel coolers are designed for cooling fuel on marine engines. They have corrugated stainless steel tubes like all heat exchangers which promotes long life expectancy.
Modern engines designed to meet emissions regulations are often fitted with fuel coolers due the high pressure fuel injection systems which increase the fuel temperature.

Design Parameters	TUBES	SHELL
TEMPERATURE	208°C(406°F)	208°C(406°F)
PRESSURE	1.31MPa(190 PSI)	1.31MPa(190 PSI)

We produced series of fuel coolers, please view the below table for their construction.

Standard Materials	Stainless Steel Type	Titanium Type
Shell	Steel	Titanium
Tubes	SS316L	Titanium
Connections	SS304/Steel	Titanium

Mounting brackets are available for all models
Surface treatment: powder coating or sandblasting
Please feel free to contact our sales engineer for your requirement specifications.
Phone: 0086-571-63720723
Fax:0086-571-63720693
Email: info@betaheatexchanger.com

Download Brochure
