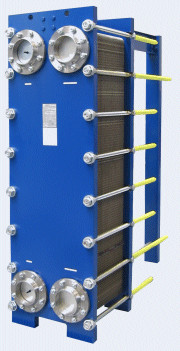

- Features and Advantages
High heating transferring coefficient: as the flowing made in the plate pack forms up turbulence at low Re and the smooth plates have little possibility of forming scale, the plate heat exchanger has a heat transferring coefficient over 5000W/m2k, which is 2-4 times that of the shell-and-tube exchanger.
High heat recovery rate: Thanks to the high heat-transferring coefficient, the heat transferring temperature difference can be very low Therefore, it is very well suited to low energy level heat recovery. Normally heat recovery using a plate heat exchanger can be as high as9 0%.
Great flexibility
Compact structure
Easy maintenance |
|
|
Material of gasket from designated material supplier protection groove for the gasket “roof type” gasket profile high temperature solidifying epoxy resin glue, or glue free gasket
Fixation and sealing: functions of fixation and sealing of the clip-on gasket are separate. Therefore, even if fixation goes wrong the gasket retains its sealing function. |
|
-

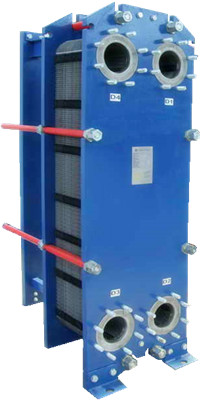

Product Specifications
Type |
L (mm) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
F (mm) |
Connection size (mm ) |
Max number of plates |
Max flow rate (m3/h) |
BH60 |
N(2.0+X) |
930 |
320 |
140 |
640 |
1200 |
60 |
250 |
36 |
BH60H |
N(3.0+X) |
930 |
320 |
140 |
640 |
1200 |
60 |
203 |
36 |
BH100 |
N(2.55+X) |
1069 |
470 |
225 |
719 |
1600 |
100 |
278 |
140 |
BH100H |
N(3.95+X) |
1069 |
470 |
225 |
719 |
1600 |
100 |
180 |
140 |
BH150 |
N(2.5+X) |
1815 |
610 |
298 |
1294 |
3000 |
150 |
600 |
360 |
BH150H |
N(3.95+X) |
1815 |
610 |
298 |
1294 |
3000 |
150 |
600 |
360 |
BH200 |
N(4.0+X) |
2150 |
780 |
355 |
1480 |
3000 |
200 |
398 |
600 |
BH350 |
N(3.5+X) |
2415 |
1100 |
560 |
1720 |
3360 |
350 |
350 |
997 |
BH350H |
N(3.5+X) |
2155 |
1100 |
560 |
1460 |
2340 |
250 |
300 |
795 |
The Simple Comparison between The Material of Gasket and Use Medium
Type |
Material |
Applicable temperature |
Applicable fluids |
Plate |
Stainless steel(SUS304.316 etc) |
∕ |
Clean water, rive water, edible oil, mineral oil |
Titanium and titanium-palladium |
∕ |
Sea water, salty water, salinous compounds |
20Cr,18Ni,SMO |
∕ |
Low concentration sulfate acid, water solution of salinous matter, inorganice water solution |
Nickel |
∕ |
High temperature and high concentration caustic soda |
Hastelloy |
∕ |
High concentration sulfate acid, chloride acid, phosphate acid |
Gasket |
NBR |
-15~+135 |
Water, sea water, mineral oil, salinous water |
EPDM |
-25~+180 |
Hot water, steam, acid, alkali |
F26 |
-55~+230 |
Acid, alkali, fluids |
FTP |
0_+160 |
High concentration acid, alkali, high temperature oil, steam |
|
